BPMN-Export

Modified on Mon, 28 Jul at 5:57 PM

8.4.0


Starting with version 8.4, you can export the workflow as a BPMN 2.0 diagram, either as an image (SVG, PNG) or as a standardized BPMN XML. The image export may be useful when you wish to archive a snapshot of a process. The BPMN XML may be useful, when you wish to import the diagram in another tool.

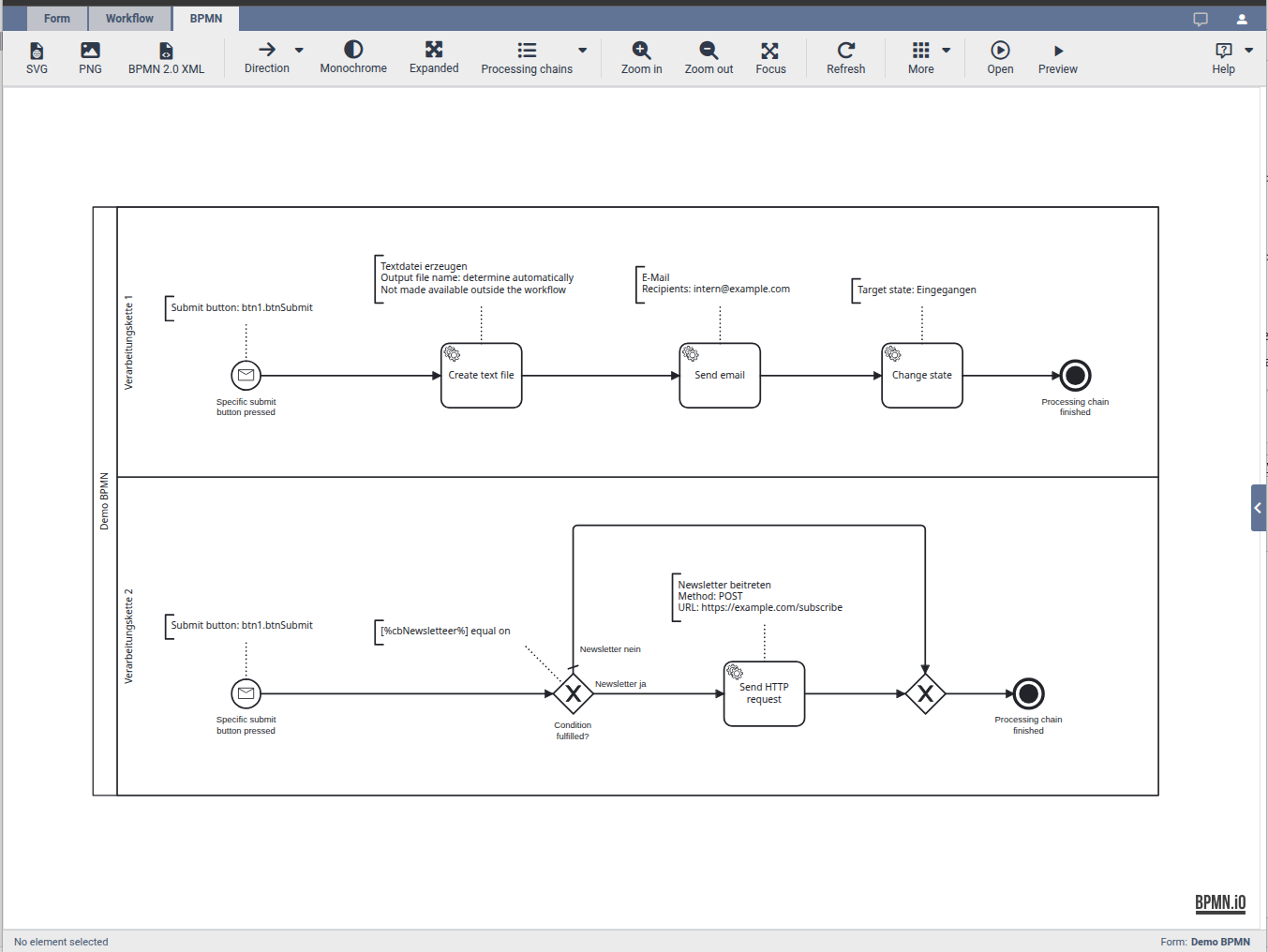

BPMN export tab for a simple workflow. Use the buttons at the top left to download the BPMN diagram, either as an image or as a standardized XML file.


Starting the export


To start the export, click on the BPMN button. The button is either directly inside the toolbar at the top of the designer (workflow designer) or within the more menu (other tabs).


Once you click on the button, a new tab opens for the BPMN export. In the center, you can view a preview of the BPMN diagram.


Use the buttons at the top left to download the diagramm, either as a PNG or SVG image file; or as a BPMN XML file.


  • SVG (vector graphics) is always sharp, regardless of the zoom level.
  • PNG (pixel graphics) has a fixed resolution and cannot be zoomed indefinitely. Also, due to browser constraints, the PNG export is unavailable when the workflow is too large.
  • The BPMN XML is an XML file that adheres to the BPMN-2.0 standard. You can import this file in all tools that also support this standard.


Toolbar

The toolbar at the top offers you a few actions and options:


The toolbar of the BPMN export tab, with additional actions and options


  • SVG, PNG, BPMN 2.0 XML
    Lets you download the BPMN diagramm in the corresponding format.
  • Direction
    Lets you change the main direction of the BPMN diagram. Available optionen are left-to-right, right-to-left, top-to-bottom, and bottom-to-top.
  • Monochrome / Colorized
    Controls whether the elements in the BPMN diagram are colorized. BPMN in Color is an extension to the BPMN standard, developed by the BPMN der OMG BPMN Model Interchange Working Group, that may not be supported by all BPMN tools yet .
  • Expanded / Collapsed
    Controls how to display sub processes in the BPMN diagram. When expanded, sub processes and their contents are shown directly within the digram. When collapsed, the content of each sub process is omitted. Click on a sub process to enter the sub process and show its content. If you wish to download an image, consider the expanded view. The collapsed view provides a quick overview and may help with some BPMN tools.
  • Processing chains
    Lets you show or hide certain procesisng chains in the BPMN diagram.
  • Zoom in / Zoom out / Focus
    Increases or decreases the display size the diagram; or focuses the diagram so that it is fully visible.
  • Refresh
    Recreates the BPMN diagram with the current data from the workflow.


Layout and rendering options

Some BPMN tools do not strictly comply with the BPMN 2.0. standard. In case you need to download the BPMN diagram as a BPMN XML file and import it in such a tool, you may need to adjust some layout and rendering options to get the BPMN diagram to display correctly:

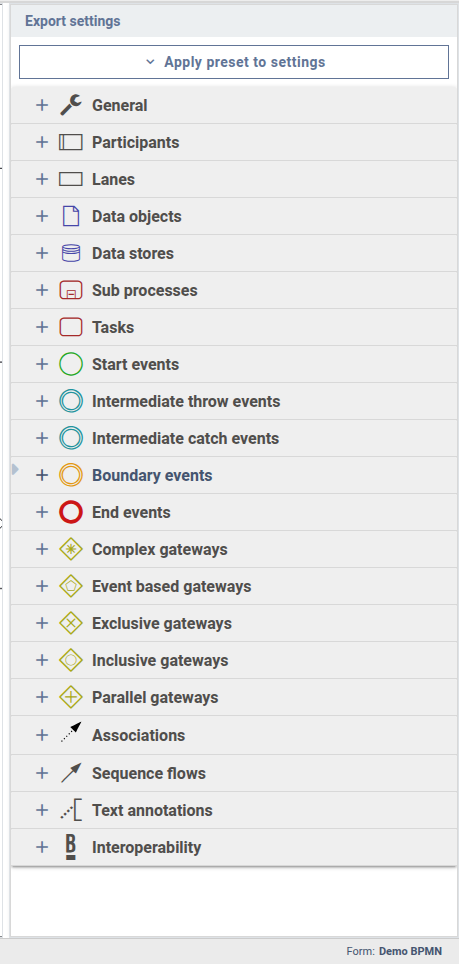

Panel with additional rendering and layout options


Click in the arrow at the right hand side to open the panel with additional rendering and layout options for the BPMN diagram.


For each BPMN element, you can configure various settings, such as their dimensions and the font size.


We also offer some presets so that you do not need to configure all options manually. Click on the button at the top to see the available presets, which may be helpful for certain BPMN tools.
